SIG Series Product Line
Professional TDR cable diagnostic systems designed for Malaysia's critical infrastructure. Choose from three specialized models for different applications and accuracy requirements.
SIG-7000 Ultra-Precision
±1cm accuracy for mission-critical applications. Aviation, defense, research labs requiring maximum precision.
View Specifications → 📄 Download Datasheet
SIG-5000 Long-Range
20km range, ±0.1% accuracy for utilities and industrial facilities. Best performance-to-cost ratio.
View Specifications → 📄 Download Datasheet
SIG-700MX16 Multi-Channel
16 simultaneous channels for wiring harness testing. Automotive production, aerospace manufacturing, quality control.
View Specifications → 📄 Download DatasheetProduct Comparison
Compare all SIG Series products side-by-side to find the best solution for your needs.
| Specification | SIG-7000 Ultra-Precision |
SIG-5000 Long-Range |
SIG-700MX16 Multi-Channel |
|---|---|---|---|
| Accuracy | ±1cm (coaxial) | ±0.1% ±0.1m | ±1cm per channel |
| Sampling Rate | 50 GS/s | 4 GS/s | 50 GS/s |
| Range | 10cm ~ 300m | 50cm ~ 20km | 10m per channel |
| Resolution | 0.5mm | 2.5cm | 2.0mm |
| Channels | Single | Single | 16 independent |
| Display | 7" color LCD | 7" TFT color LCD | Software-based |
| Power | Battery (8 hrs) | Battery (8 hrs) | 100-240 VAC |
| Weight | 3.2 kg | 2.8 kg | Benchtop |
| Primary Use | Mission-critical precision | General-purpose diagnostics | Multi-channel testing |
PDF | Includes all specifications and applications

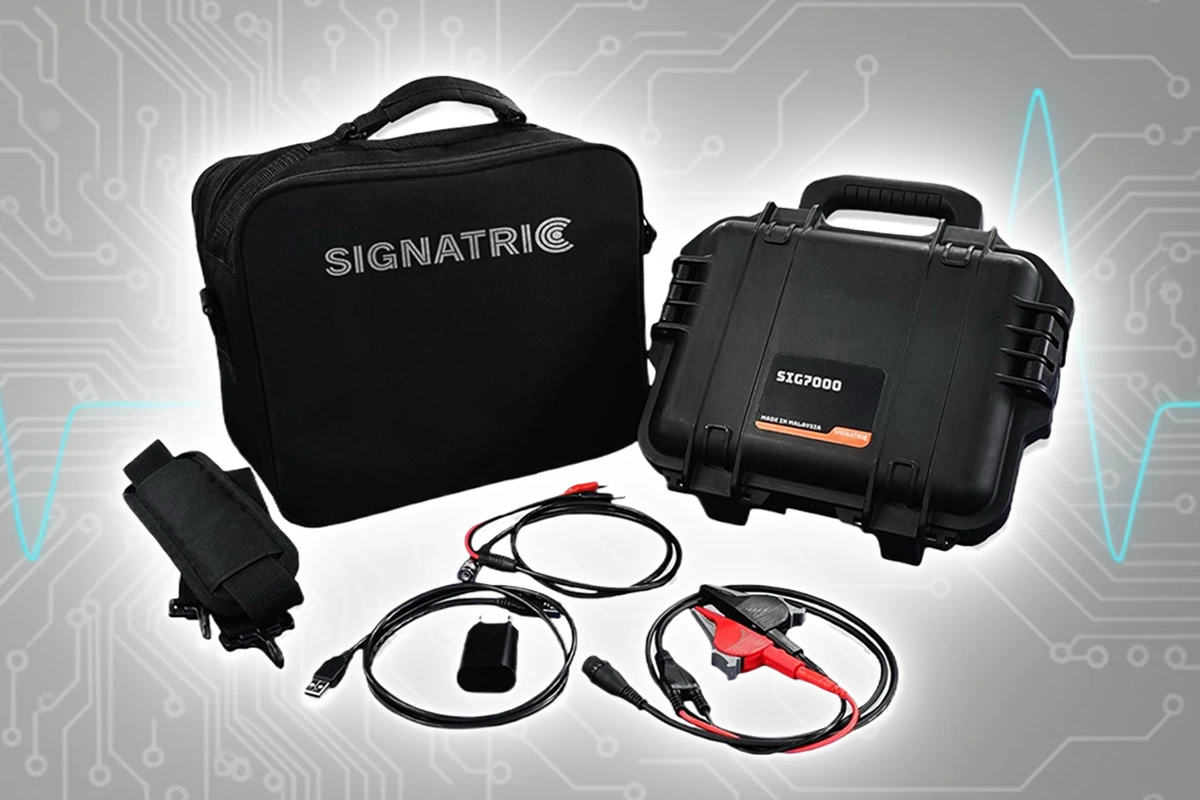

SIG-7000: Ultra-Precision System
For applications requiring maximum accuracy and advanced analysis
| Technical Specifications | |
|---|---|
| Accuracy | ±1cm (coaxial cable) |
| Sampling Rate | 50 GS/s |
| Range | 10cm ~ 300m |
| Resolution | 0.5mm |
| Display | 7" color LCD |
| Battery Life | 8 hours operation |
| Weight | 3.2 kg (portable) |
PDF | Includes full specifications, dimensions, and application notes
Primary Applications

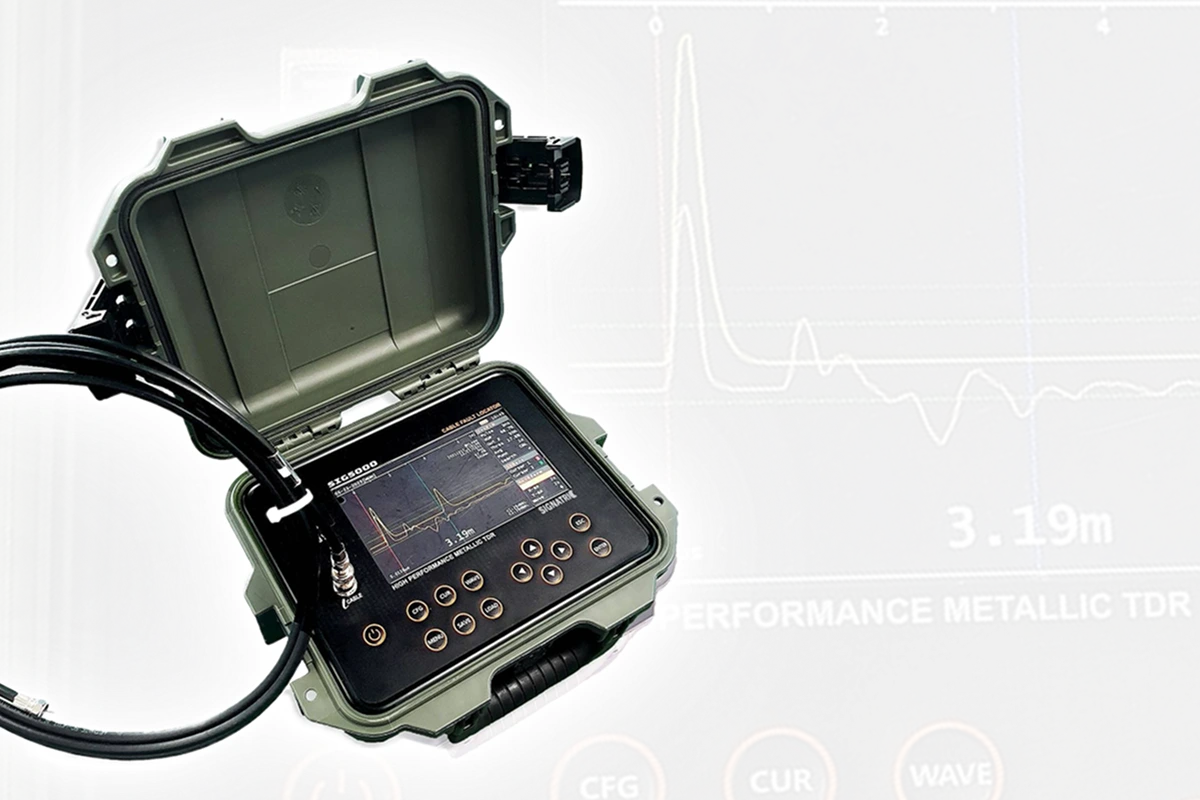

SIG-5000: Long-Range Analyzer
For general-purpose cable diagnostics with excellent performance-to-cost ratio
| Technical Specifications | |
|---|---|
| Accuracy | ±0.1% ±0.1m |
| Sampling Rate | 4 GS/s |
| Range | 50cm ~ 20km |
| Resolution | 2.5cm at all ranges |
| Display | 7" TFT color LCD |
| Battery Life | 8 hours operation |
| Weight | 2.8 kg (portable) |
PDF | Includes full specifications, dimensions, and application notes
Primary Applications

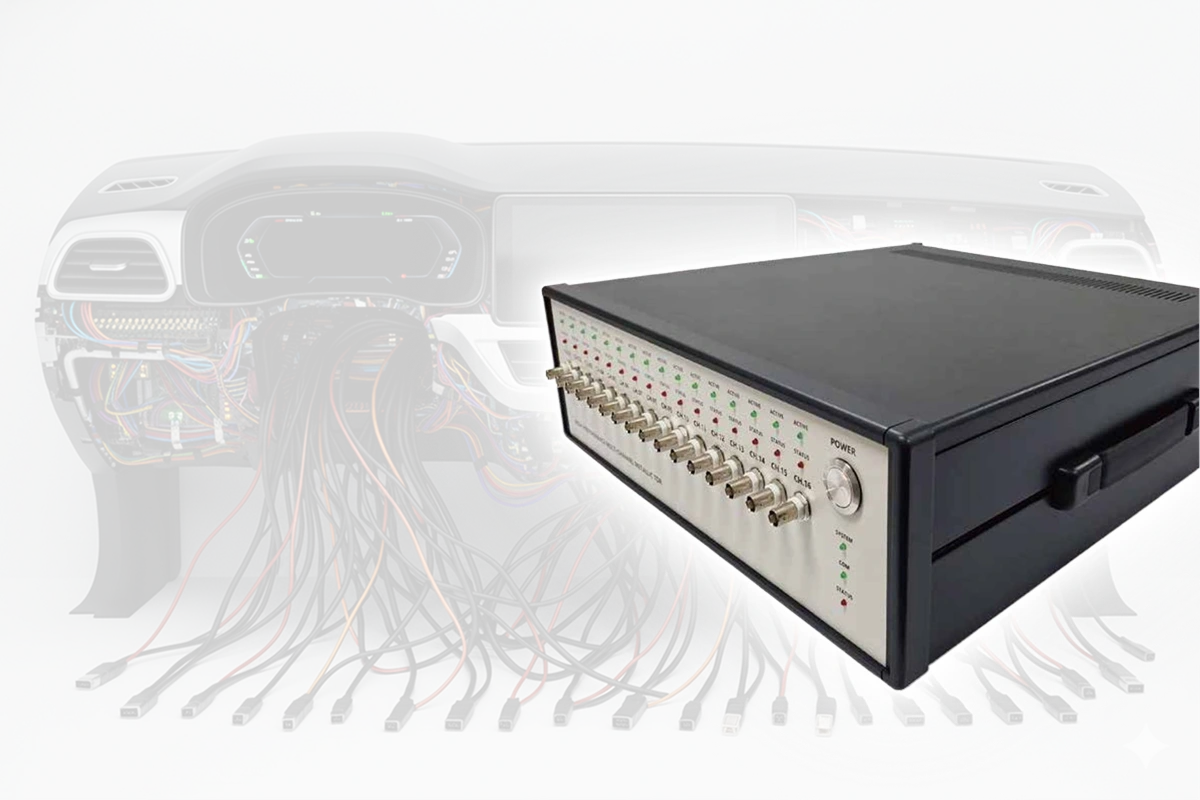

SIG-700MX16: Multi-Channel System
For simultaneous testing of complex multi-conductor cables and harnesses
| Technical Specifications | |
|---|---|
| Channels | 16 independent TDR |
| Accuracy | ±1cm per channel |
| Sampling Rate | 50 GS/s |
| Range | 10m per channel |
| Refresh Rate | 1 time/sec (all channels) |
| Power Supply | 100-240 VAC (benchtop) |
| Software | WaveMateX™ (Windows) |
PDF | Includes full specifications, dimensions, and application notes
Primary Applications
Service & Support Options
Equipment Sales
Build internal diagnostic capability with SIG Series systems including training, warranty, and technical support.
Request Quote →Field Services
Expert cable testing without capital investment. Emergency fault location, preventive testing, commissioning verification.
Book Service →Training & Support
Comprehensive TDR training programs and ongoing technical consultation to build your team's expertise.
Learn More →Why Choose SIG Series?
- Proven Technology: Deployed in defense, power generation, and manufacturing across Asia
- Local Support: Malaysian-based team with rapid response capability
- Comprehensive Training: Build your team's diagnostic expertise
- Flexible Options: Equipment sales, field services, or training programs
Ready to Discuss Your Requirements?
Whether facing urgent cable faults, evaluating equipment purchase, or building internal capability.
Contact Cable Diagnostics Division →Response time: 24 hours for all inquiries, same-day for critical faults
